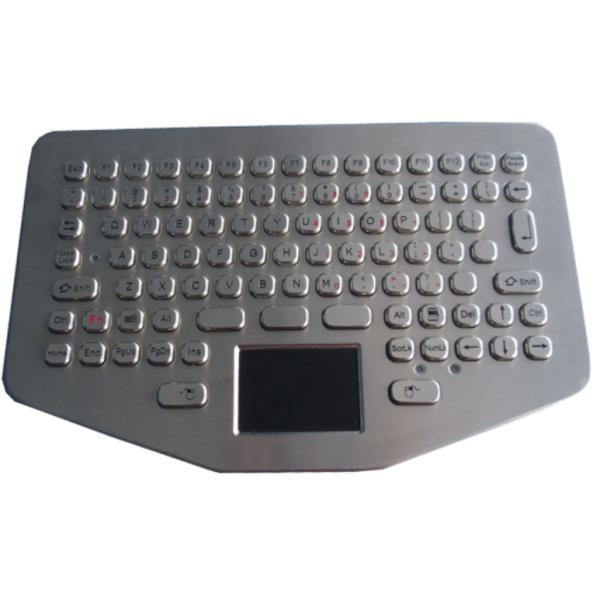

IP65 Explosion Proof Industrial Metal Keyboard With Ruggedized Touchpad
DESCRIPTION:
-94 keys compact format IP65 static vandal proof stainless steel industrial keyboard
-With IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position.
-F1, F2, F3…F10, F11, F12 are on the top line for easy operation,
-Industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with for fast and accurate data input without any noise,
-Top panel mounting solution.
DIMENSIONS: 238.0mm x 152.0mm (front panel)
Special Features:
Actuator/keys: 94 keys, super quality SUS304 brushed stainless steel
Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.
Key travel: 2.0mm
Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm
(pressure point)
Switch life: more than 10 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate:3.0mm thickness brushed and oxidized aluminium
Touchpad: sealed and ruggedized tough touchpad.
Touchpad cover: Composite
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
| MECHANICAL DATA |
| Key | 94 keys, super quality brushed stainless steel |
| Key top style | Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar. |
| Key travel | 2.0mm |
| Switch life | more than 10 million of operations |
| Actuation Force | 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm(pressure point) |
| Front Plate: | 1.5mm thickness super quality brushed stainless steel |
| Back Plate: | 3.0mm thickness brushed and oxidized aluminium |
| Dimensions: | 238.0mm x 152.0mm (front panel) |
| TOUCHPAD |
| Touchpad cover | Composite |
| More than Lifetime 10 million strokes |
| Mutual Capacitance sensing |
| X/Y position
sensing resolution | 40 counts/mm |
| X/Y position reporting | Relative |
| Output
(self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5 V DC ±0.25V |
| Current rating
(active mode) | 17 mA |
ENVIRONMENTAL ADAPTABILITY :
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY:
RoHS Compliant, CE and FCC, ESD
Protection Level: IP65(front panel)
Vandal resistant IK09
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min
APPLICATION:
- Unsupervised or semi-supervised positions of varied access applications,
- Internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations.
- Other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
Long stroke (2.0mm) buttons for fast and accurate data input
